FURUTECH PURE POWER 6 NCF(頂級電源分配器)

PURE POWER 6 NCF
Top-of-the-Line Furutech Power Distributor
LUXURIOUSLY ENGINEERED POWER DISTRIBUTOR ELIMINATES EMI & RFI
-------Nano Crystal² Formula--------

我要分享

超重量級電源分配器
一種前所未見的超低雜音設計, 能完全消除高頻雜音. 將高科技效果導入家用影音系統至今, 從未停止再生純淨完美聲音品質的夢想. Pure POWER 6 NCF 使用航太鋁合金作為材料.整座機體是用CNC精密切削而成,是一座高成本、超高性能的電源分配器。
結構上分成三組完全隔離的系統.分別供電給類比設備、數位設備以及擴大機(設備).超級隔離及GC-303特殊屏蔽層這兩種結構能將外來的電磁波及高頻雜訊完全阻絕在外.機內配線是以Alpha-OCC導體配置而成。並採用特殊專利的配線通道設計,在中心部位填充以GC-303;能夠消除機內配線之間因電流傳輸引起的高頻雜訊干擾,使訊源的電源品質更臻完美 。電源插座採用Hi-End Audio級GTX-D NCF(R)型電源插座;以及接地端/基座獨立分離設計能強化屏蔽性能及升級電流的穩定度。
深入機體表面25mm{深度)的電源插孔專利設計,能夠達到音質提升立竿見影的效果。
ADVANCED MATERIALS AND TECHNOLOGIES ENSURES STABLE QUIET POWER FOR YOUR ENTIRE SYSTEM

Nano Crystal² Formula - Nano Crystalline, Ceramic and Carbon Powder
Incorporated into select Furutech products, Nano Crystal² Formula --- NCF is comprised of a special crystalline material that has two “active” properties. First, it generates negative ions that eliminate static and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional “Piezo Effect” damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material – only found in Furutech products!

Furutech upgrade their Pure Power 6 AC Mains Distributor, the ultimate expression of Furutech’s Pure Transmission Technology. Furutech engineers each and every step of power and signal transfer--no matter how small--using the finest materials and technologies available, like their proprietary Formula GC-303 EMI-absorbent material and Two-Stage Cryogenic and Demagnetizing Super α (Alpha) Treatment applied to all metal parts.

Luxury Build

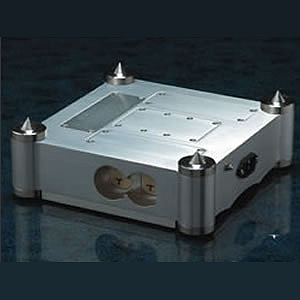

The Pure Power 6 NCF is built like a Swiss bank vault, a virtual black hole for EMI and RFI. The substantial, beautifully-crafted chassis is precision CNC-machined from solid aerospace-grade aluminum alloy that effectively shields against RFI (Radio Frequency Interference).

Three separate milled compartments house three independently-wired duplex receptacles using top-quality Fluorpolymer-shielded high-purity silver-plated Alpha-OFC. The hot and neutral conductors from the IEC are loomed into a large, centrally-located chamber--secured Bugatti-like with eight beautifully machined rivets--that’s filled with Furutech’s EMI-absorbent Formula GC-303 material. GC-303 absorbs the high-frequency noise that develops whenever passing current through wire.

Furutech’s patented GTX-D NCF Receptacles enhance the vault-like build, ensuring the tightest and most secure power cord fit imaginable. Pure Transmission Technology is applied at every level: The rhodium-plated receptacles are not simply flush with the outer chassis but tapped 25mm into the thick aluminum for an outstandingly tight fit.

Furutech’s already robust mounting flanges at top and bottom of each duplex outlet are held in place against the chassis with thick aluminum blocks applying pressure along the entire width of the flange rather than just securing it with screws at four points.

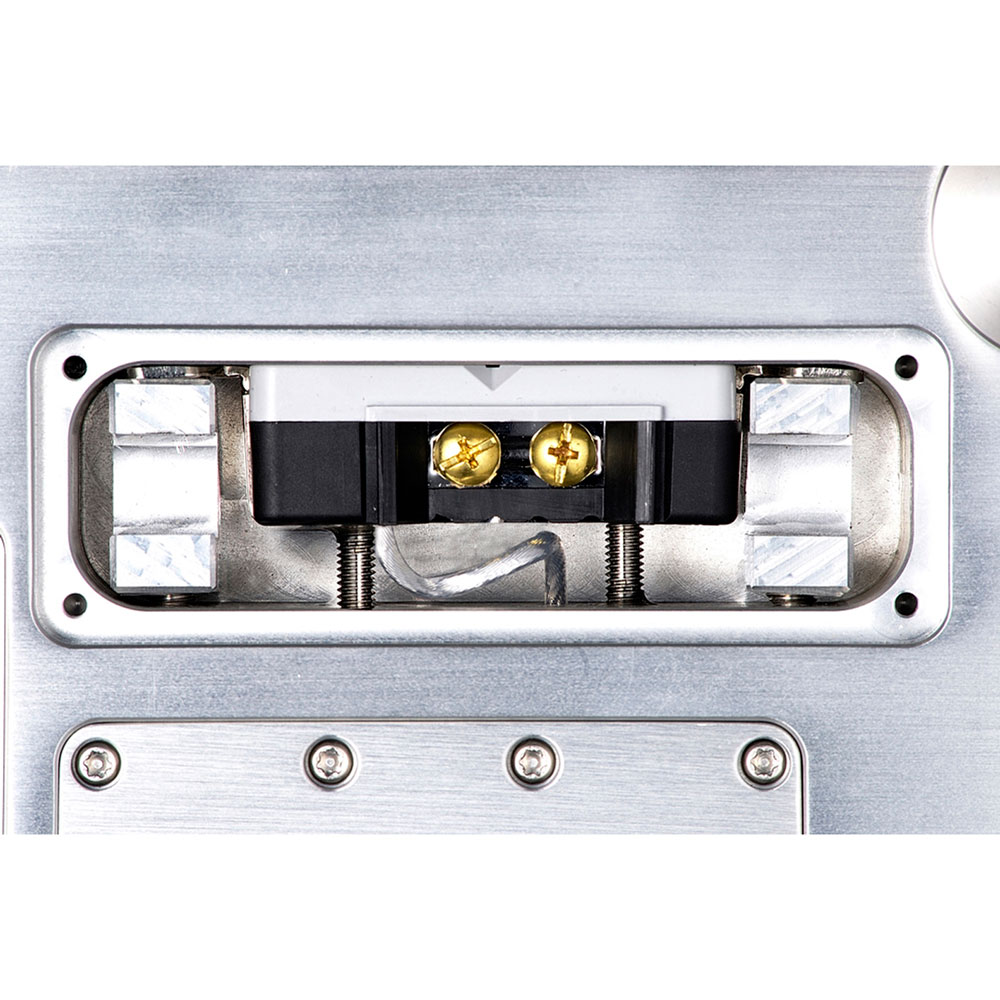

When Furutech say Pure Transmission, they mean it. Each duplex receptacle is additionally stabilized with double Axial Locks; a pair of special factory-torqued screws anchor the back of each receptacle at two points for ultimate mechanical integrity.

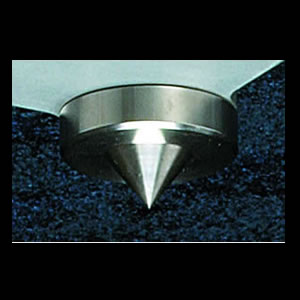

Four elegantly machined adjustable footers keeps the Pure Power 6 stable for your system’s power cords. Run digital into one duplex, analog front-end components into another, and your amplifier on the third for stunning, unrestricted, clean, stable AC power and rich, dynamic sound.

Pure Transmission Grounding/Earthing Post
The three duplex receptacles are not wired to incoming ground; they “float” electrically. The green ground wire from the incoming IEC fitting is tightly fixed to the chassis at the bottom of the center chamber before it’s filled with GC-303, which further isolates the noisy ground. To ensure your safety the Power 6 must be grounded at its Grounding/Earthing Post located near the input IEC.

Induction and Absorption method
Pure Power 6 NCF has been designed based on the theory that the role of a power distribution unit, besides distribution of power, should be the absorption/elimination of high-frequency noise. The audio you hear from your system is essentially the incoming electricity itself, and the typically violent storms riding the AC line and its ground is very detrimental to the performance of your components. Highly resolving audio systems can retrieve incredible amounts of detail from your favorite recordings. Unfortunately, they can also reveal problems elsewhere in the power chain—especially when it comes to noise flowing through your valuable components from your AC power mains. High-frequency noise and electromagnetic noise are radiated through a system by the antenna effect, and this noise is difficult to remove. Many makers of power distribution products will try to minimize the adverse effects of the noise with a simple electrical circuit, whereas the Pure Power 6 NCF, through use of special grade materials, isolation and grounding methods, incorporates a method of “induction and absorption” to eliminate this noise. Tests results show (graph 1) the surprising effectiveness of the “induction and absorption” method of the Pure Power 6 NCF as compared to the industry standard circuit method for reducing high-frequency and electromagnetic noise.

1. 屏蔽: 航空級特殊鋁合金, 外觀是由CNC精密切削而成。底部機座蓋板也是用同樣材質製造而成,厚度8mm。
2. 震動測量:使用特殊的不銹鋼鉚釘,高度可微調 。
3. 結構:三線分開獨立(直入插座)配置的結構設計。
4. 專利沉座形插孔設計: 電源座插孔沉入表面25mm能夠增加插頭之穩固性,避免插頭鬆落。
5. 雜音對策 1:特殊材料 GC-303 能吸收雜訊,消除電磁波干擾。
雜音對策 2.: 雙層超重負荷配線管道結構設計
6. 連接線配置: 3 組配線分開連結
7. 插座: 配置 Furutech Hi-End Audio grade GTX-D NCF ( R)(鍍銠) 插座3 組。
8 屏蔽效果:機體、配線皆經 Furutech 作 a ( Alpha) Process 處理
9. 多重特殊製程: 尾座、插座以及機內配線
10. 機內配線:Alpha-12,單結晶銅導體 且經 Furutech a (Alpha) Process處理。

** 尺寸: 250mm x 250mm x 95 mm ( 寬/高/深)
** 重量: 約 10 kgs
**音效特性:大動態下, 仍能保持定位的穩定.
