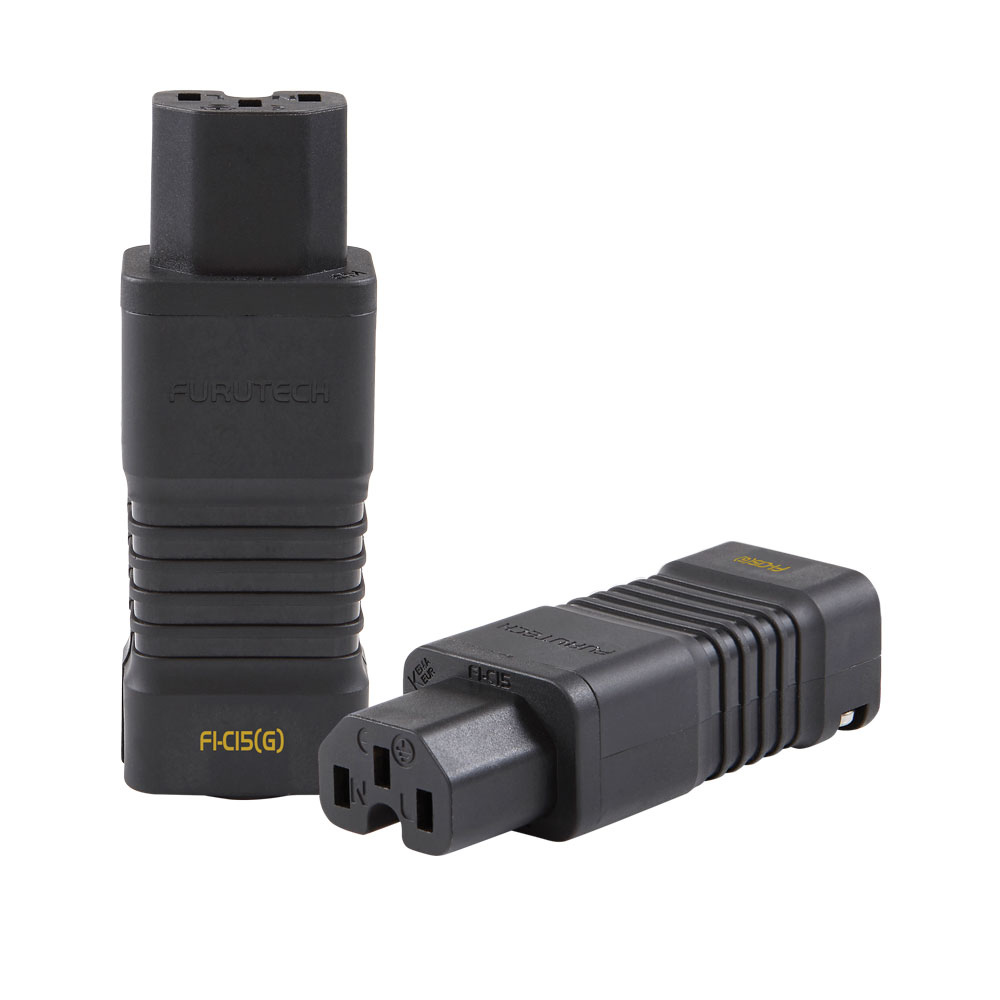

FI-C15 series 高性能薄型IEC電源母頭

各式器材AC座周邊空間狹小,升級電源線首選接頭

Furutech is known the world over for a huge variety of top-quality OEM parts and delivers consistently superior results by following Pure Transmission principles; examine every link in the power and signal path and ultimately optimize each and every element.

The new FI-C15 series feature a new plating technique which delivers sonic improvements and a more durable finish. Also new to the series are new design cable clamps for firm grip and resonance control.
New outer dimensions design that easy to use in cramped or small place!

我要分享

FI-C15 NCF(R)使用純銅鍍銠(rhodium-plated α (Alpha) Pure copper)α導體,以達穩定連結作用;插座主體與外殼部分為尼龍及玻璃纖維材質,並添加NCF抗共振阻尼材質,抑制產生噪訊及共振;電線阻尼夾包含聚碳酸酯及不銹鋼螺絲;整體採一體成形設計,外殼部分以螺絲固定。
FI-C15相關系列產品亦有FI-C15(G)、FI-C15(Cu)、FI-C15 NCF(R)三款,使用純銅鍍銠/24K鍍金/無鍍層α導體(Rhodium or 24k gold-plated or Non-plated α (Alpha) Pure copper),插座主體與外殼部分為尼龍及玻璃纖維材質,普通型除了無NCF技術的加持之外,大致上規格相同於FI-C15 NCF(R)。
FI-C15系列產品使用全新的電鍍技術以增進聲音品質及耐用性,同時也研發特殊設計的壓力板及線夾(cable clamps)以確實鎖固及控制共振,並計算出能增加接觸面積17.142%,此新型設計正在申請專利中。
外型纖薄的尺寸設計,更讓用家們得以靈活運用於各種受空間限制的IEC插座(IEC sockets),應用性高的產品將是未來廣泛流行使用的趨勢。

•Rhodium or 24k gold-plated or Non-plated α (Alpha) Pure copper Conductor
•Nylon /fiberglass main body and inner cover plate.
•Specified for cable diameters of 6.6mm to 16.0mm (Wire size of 3.5mm2 (12AWG) max.)
•Polycarbonate cable damping clamp with stainless screws
•Connection: Set screw
•Dimensions: 22.0mm X 30.0mm X 82.2mm overall length.

•電源線直徑: 6.6mm~16.0mm
•電源線芯最大直徑: 3.5mm2 (12AWG)
•尺寸: 22.0mm x 30.0mm x 82.2mm總長
•類型: 2極+接地
•功率: 15A 125V / 10A 250V A.C
