CF-602F NCF(R)

最新旗艦平衡端子NCF全面採用_ Furutech CF-602F NCF(R)、CF-601M NCF(R)

CF-602F NCF(R)與CF-601M NCF(R)是⽇本Furutech最新發表的旗艦平衡端⼦,型號中的F表⽰Female⺟頭,M為Male公頭、R代表是Rhodium-plated鍍銠版本。NCF是Furutech專有的技術材料,全名為奈米結晶配⽅(Nano Crystal²Formula),其是⼀種特殊的結晶粉末(Powder),具有兩個活躍(active)的屬性,能產⽣負離⼦以減少靜電及能將熱能轉換成遠紅外線,讓其成為絕佳的電⼦與機械上的阻尼材質,近⼀步強化了震動吸收,這也是Furutech⾸次使⽤NCF的平衡端⼦。


NCF是Furutech累積30多年的研發成果,能⼤幅降低噪訊,改善結像定位,提升聲⾳舞臺的空間感,CF-602F與CF-601M的本體採⽤加入NCF液體結晶⾼分⼦樹脂,並結合了尼龍、玻璃纖維、奈米結晶壓電陶瓷顆粒,碳粉及Furutech特殊的NCF抗震阻尼材料。這個特殊的NCF阻尼材料亦注入CF-602F與CF-601M⼀體成型α(Alpha)純銅鍍銠的核⼼導體(Pin)中,這是史無前例的重⼤成就。藉由使⽤最先進的技術與材料,Furutech研發出了⼀種兩階段超冷與去磁處理程序(Two-Stage Cryogenic and Demagnetization Alpha Process),能重整排列所有的分⼦,⼤幅提⾼其物理特性並完成去磁,⼤幅提升了聲⾳與影像的表現。

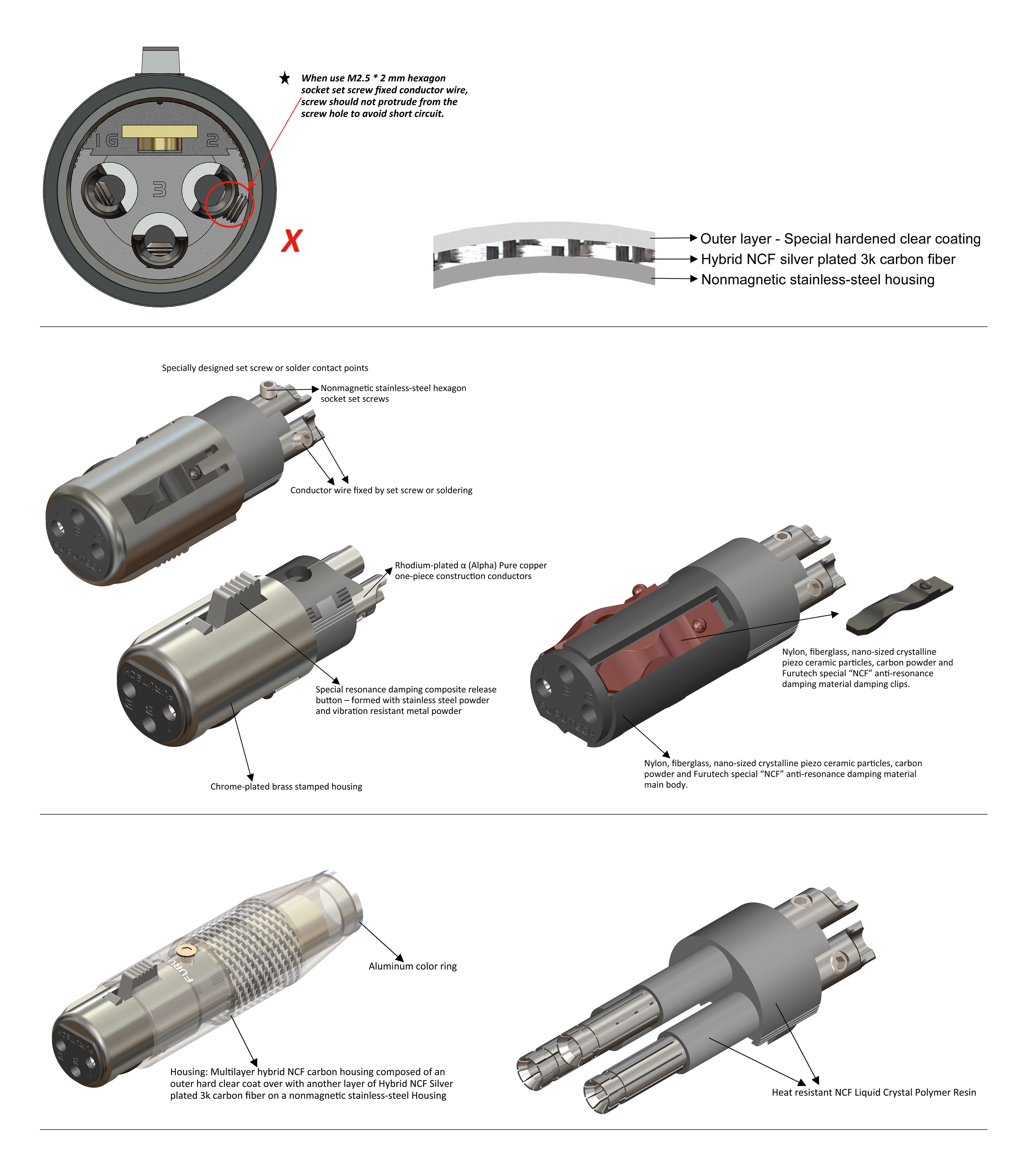

* Rhodium-plated α (Alpha) Pure copper one-piece construction conductors.
* Nylon, fiberglass, nano-sized crystalline piezo ceramic particles, carbon powder and Furutech special “NCF” anti-resonance damping material main body combine heat resistant NCF Liquid Crystal Polymer Resin. NCF delivers improvements in the depth and focus of the sound stage, harmonics and tonal balance. Low frequencies are cleaner, with a greater sense of definition made possible by a lowered noise floor.
* Special resonance damping composite release button – formed with stainless steel powder and vibration resistant metal powder.
* Chrome-plated brass stamped housing.
* NCF material damping clips
* Housing: Multilayer hybrid NCF carbon housing composed of an outer hard clear coat over with another layer of Hybrid NCF Silver plated 3k carbon fiber on a nonmagnetic stainless-steel Housing. The best of damping and insulation materials improve frequency extension and tonal balance.
* Conductor wire fixed by set screw or soldering.
* Specified for cable diameters max. 10.0mm.
* Accommodates: 13AWG (2.62 max. stranded wire / 12AWG (3.3 max solid core wire. Wire diameter 2.4mm max.
