FI-8N 系列(鎖式結構)

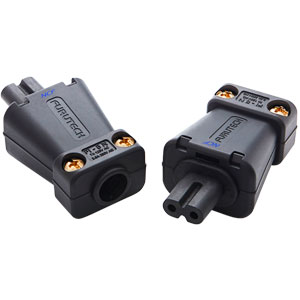

High End Performance FI-8N IEC Connectors(高品質8字形電源母頭)
導體:Alpha無磁處理燐青銅
2種表面電鍍選擇-(G)鍍金/(R)鍍銠/NCF版本
FURUTECH為了讓日系8字電源器材使用者,也能升級體驗高階電源接頭所帶來的全新感受,特別開發的全鎖式接頭(應為市面唯一一款可DIY的8字形接頭),一般市售8字電源線大多為電解銅(工業銅)素材,電源接頭為射出成形一體式,影音表現僅為一般水準,有了FURUTECH FI-8N接頭,玩家可將原有電源線依需求來升級,可明顯提升電源傳導,大幅升級影像與聲音表現
Nano Crystal² Formula (NCF)
Incorporated into selected Furutech products, NCF features a special crystalline material that has two 'active' properties. First, it generates negative ions that eliminate static. Second, it converts thermal energy into far infrared. Furutech combines this remarkable material with nano-sized ceramic particles and carbon powder for their additional 'piezoelectric effect' damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material. Created by Furutech, it is found exclusively in Furutech products.
•Furutech’s unique female conductor design features rhodium-plated α (Alpha) beryllium copper and phosphor bronze conductors.
•Nylon / fiberglass with special “NCF” anti-resonance damping material - nano-sized crystalline, piezo ceramic particles and carbon powder main body.
•Specified for cable outer diameters of 6.0mm~13.0mm.
•Wire accommodation: Max. 2.4mm dia.(Solid core) // 2.0 Sq.mm/14AWG (Strand wire)
•Connection: Set screw.
•Dimensions: 36.8mm X 28.2mm X 71.0 mm ± 0.5mm overall length approx.
•Net Weight: 51.4g approx.
*Rating: 7A 125V / 2.5A 250V AC
