The Pure Transmission Mission
A very Furutech power product, manifesting a devotion to best performance in every element of AC and signal transfer Considering that what you actually hear is in a very real sense the direct product of the incoming AC then the final few feet are of prime importance for best performance.
Of course everyone would love to make pure-copper receptacles, but its malleability – lack of stiffness – makes pure copper a poor choice. That’s why you’ll find phosphor bronze or brass in some receptacles. Furutech’s intense engineering scrutiny has resulted in an industry-first, a technique allowing us to use special Furutech 24k gold- or rhodium-plated α (Alpha) pure copper conductors strengthened and sprung by our innovative nonmagnetic Stainless Steel Conductor Spring System that keeps a firm grip yet won’t damage male connector blades or their plated surfaces. Even the screw-down pressure plates are curved to maximize contact area. The GTX receptacle can be summed up in a word; virtuoso!
Feel, experience and communicate with music and sound!
• Gold-plated α (Alpha) Pure Copper Conductor (0.8mm)

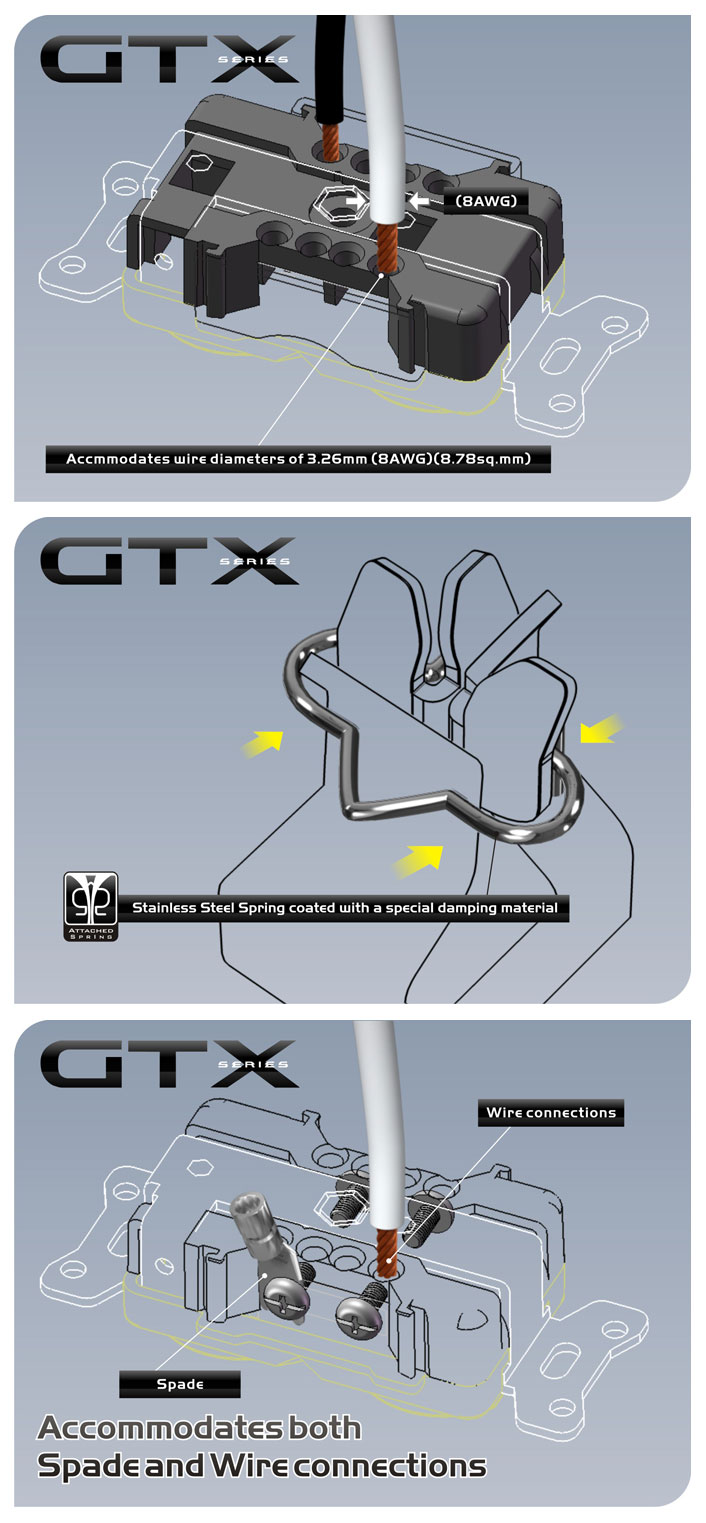

• Nonmagnetic stainless conductor spring system

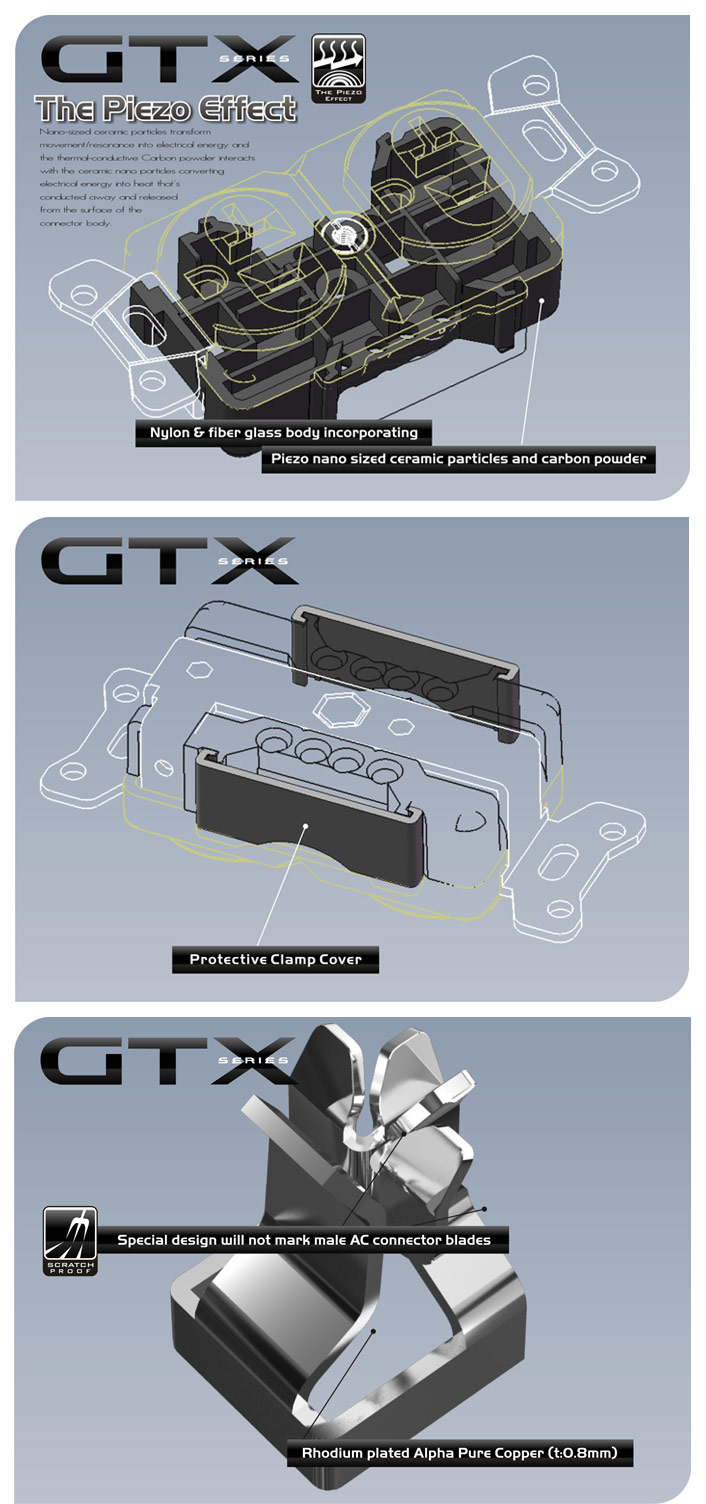

• Body material: Nylon/fiberglass with piezo ceramic and carbon damping material
• Cover material: Polycarbonate
• Parts set with nonmagnetic 2.0mm-thick stainless brace plate
• Specified for wire diameters of 4mm (set screw)
• Dimensions: 104.0 mm (L) x 47.2 mm (W) x 28.0 mm (H)

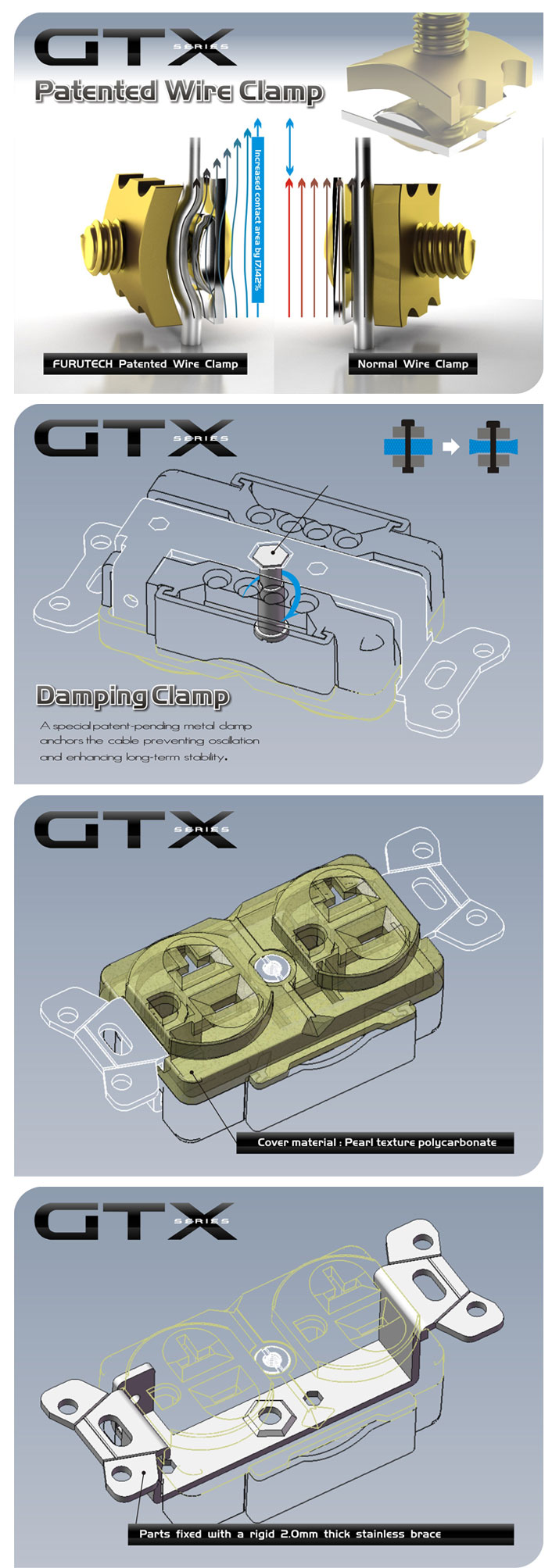

• Total attention to detail and build quality extends right down to a specially designed patent-pending conductor pressure plate (see below) that increases contact area
• Furutech spade terminal FP-209 recommended for 10 AWG wire
