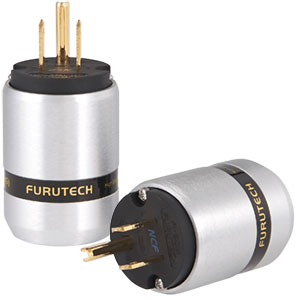

FI-46M NCF(G)
日本Audio Accessory Award 2020銘機賞推薦!
新款NCF版本(Furutech第一款採用NCF+表面鍍金處理之產品)
導體:經Alpha深層超低溫無磁性處理高純度紅銅+鍍金(G)處理
電極部採與FI-50系列相同結構新式鼓型夾線,接觸面積提升17.42%,可大幅提升導體電流傳導以及導體鎖固之穩定性
外殼:刷紋陽極處理6061 T6鋁合金
容許線徑(尾部):6~20mm

＊NCFシリーズの製品特徴＊
これまでの強力な制振効果に加え、静電気対策として樹脂部分に特殊素材「NCF」を調合。飛躍的な効果をもたらしました。ノイズの発生を抑え、静寂感が高まり、音の濁りがなくなることにより、埋もれていた音源本来の魅力を引き出します。
Nano Crystal² Formula (NCF)
Incorporated into selected Furutech products, NCF features a special crystalline material that has two 'active' properties. First, it generates negative ions that eliminate static. Second, it converts thermal energy into far infrared. Furutech combines this remarkable material with nano-sized ceramic particles and carbon powder for their additional 'piezoelectric effect' damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material. Created by Furutech, it is found exclusively in Furutech products.

The Furutech Floating Field Damper System
Magnetic Floating Field Damping Current flowing through a cable and its connector creates magnetic (and electrostatic) fields around them, building and collapsing 60 times per second in 120VAC systems. This magnetic field induces current flow– electrical potential–in small parts like the screws holding the connector shell together which have to be metal for tight clamping. The current flow in these small parts actually creates “floating” magnetic fields around them, and they interfere with the cable/connector’s larger surrounding magnetic field resulting in noise and distortion.

The Furutech Floating Field Damper solves the biggest problem you never realized you had by star grounding the metal parts in which floating magnetic fields are induced by current flow. All the various metal parts of the connector are tied together and shunt whatever electrical potentials generated to ground. This significantly lowers noise by reducing distortion for ultra-clean and stable power transfer.
US Patent No.: 6,669,491/ European: EP1445837
特徴
セラミックとカーボンをナノ単位のパウダーにし、一定比率で調合させることで飛躍的な振動吸収効果を発揮します。
静電気対策特殊素材「NCF」を調合。これまでの強力な制振効果に加え、静電効果が高まりました。
ハウシングはアルミ合金の削り出し。ブラッシング仕上げでアルマイト処理。内部には制振性のある特殊樹脂を採用しました。
ハウシング内部のケーブルクランプ部にも重厚で制振特性を持つ特殊金属を採用したことで強力な制振効果を発揮します。
電源プラグFI-46M NCF(G)のナイフ部は高伝導性を有する純銅を採用。金メッキ処理し、α-Process 処理（超低温処理＆特殊電磁界処理）を施しています。
取付ネジの電位差を無くし、不要な輻射ノイズを抑え、オーディオ装置全体のクオリティを向上させるアースジャンパーを装備。
•α (Alpha) Pure-Copper Gold-plated Conductor
•Floating Field Damper System (US Patent No.: 6,669,491/ European: EP1445837)
•Nylon/fiberglass body with a special anti-resonance nano-sized crystalline, piezo ceramic particles and carbon damping material
•Aluminum (6061 T6) housing brushed and anodized. The best of damping and insulation materials improve frequency extension and tonal balance.
•Specified for cable diameters from 6mm to 20mm
•Dimensions: Body length 41.8mm x 34.0mm diameter / 78.9mm overall length approx.
•Metal cable clamp improves grip and reduces mechanically and electrically induced distortion
•Net Weight: 90g approx.
*15A 125V AC
