POWER SUPPLY CABLE(40M/Reel)
導體：α(Alpha)-μ–OFC Conductor (7X35/0.16mm diameter)
10 AWG α-Conductor(5.0 Sq.mm)
外徑:15.5mm
10 AWG α-Conductor(5.0 Sq.mm)
α(Alpha)-μ–OFC Conductor is the fine μ–OFC conductor wire strands and treated with the α(Alpha) process.

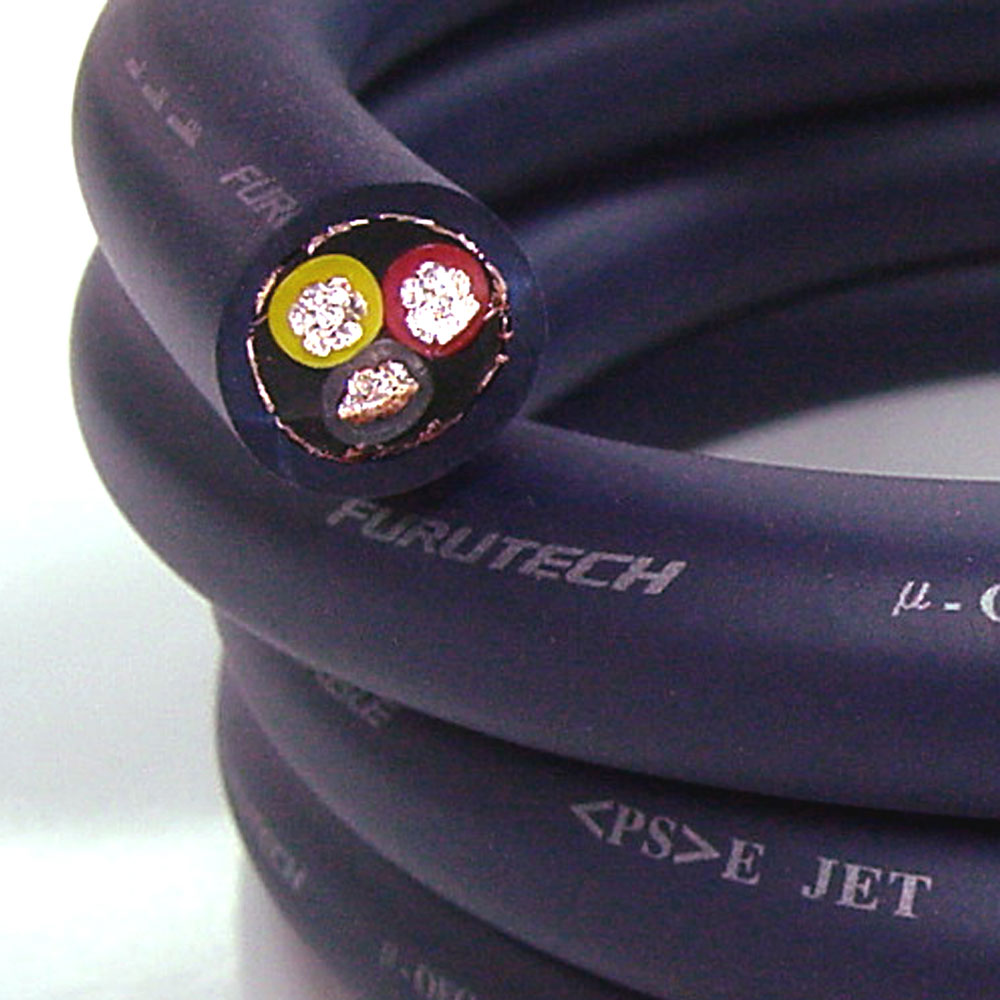

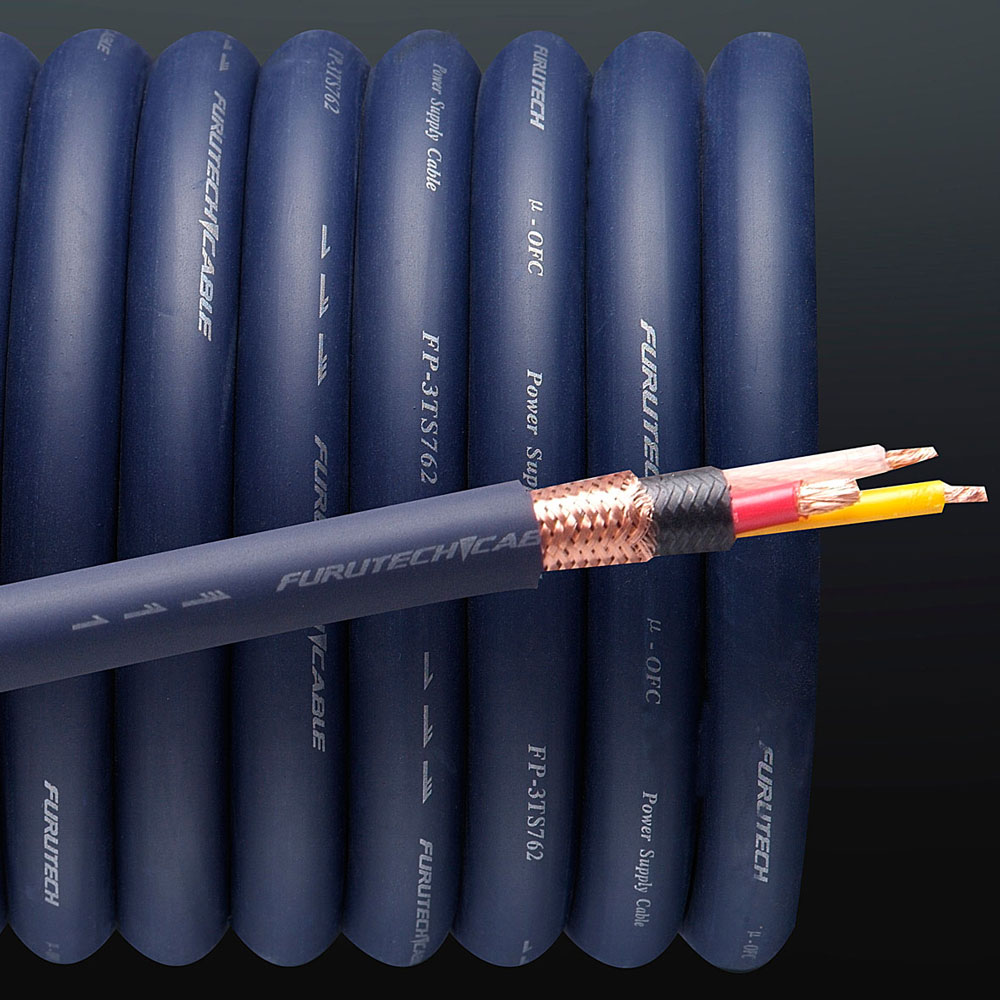

* Conductor ：α(Alpha)-μ–OFC Conductor (7X35/0.16mm)
* Insulation:PE(Red、Natural、Yellow) Dia.:5.2mm
* Twisting:3 Cores Twisted Together
* Inner Sheath:Flexible PVC (Black)
* Shield:0.12mm α(Alpha) conductor wire Braid
* Sheath:Flexible PVC (dark Green)
* Overall Diameter: 15.5 mm
* Electrical Properties
Max. Conductor Resistance: 2.4 Ω／km Min. Insulation Resistance: 2500 MΩ‧km
Dielectric Strength: AC 3000 V／1 min. v
