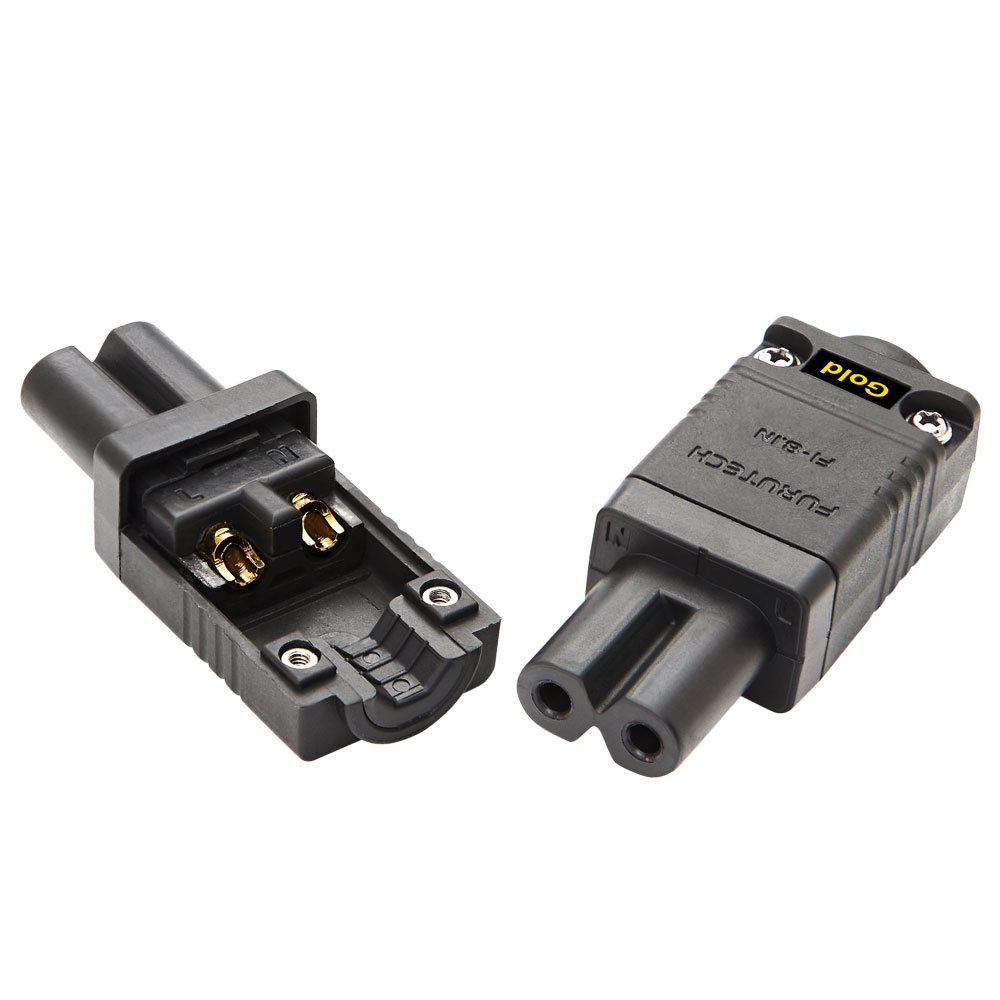

FI-8.1N IEC connector 2款表面電鍍處理選擇---(G)鍍金 / (R)NCF鍍銠版本
新款薄型銲接式結構設計,專為電源接頭周邊空間狹小不足之器材開發(如LED TV),強化電源傳導效能,影音品質提升看的見
Nano Crystal² Formula (NCF)
Incorporated into selected Furutech products, NCF features a special crystalline material that has two 'active' properties. First, it generates negative ions that eliminate static. Second, it converts thermal energy into far infrared. Furutech combines this remarkable material with nano-sized ceramic particles and carbon powder for their additional 'piezoelectric effect' damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material. Created by Furutech, it is found exclusively in Furutech products.
Furutech is known the world over for a huge variety of top-quality OEM parts and delivers consistently superior results by following Pure Transmission principles; examine every link in the power and signal path and ultimately optimize each and every element.
New FI-8.1N series which delivers sonic improvements features a new design of cable clamp for firm grip and resonance control, and new slimline dimensions for use in tight spaces!
•Rhodium-plated or Gold-plated α (Alpha) Phosphor Bronze Conductor.
•Nylon / fiberglass with special “NCF” anti-resonance damping material - nano-sized crystalline, piezo ceramic particles and carbon powder main body and clamps.
•Specified for cable outer diameters of 5.0mm / 10.5mm.
•Wire accommodation: Max. 2.0 Sq.mm / 14AWG.
•Connection: Solder
•Accessories: Round washer head screws (2 Pcs spares).
•Dimensions: 14.5mm X 21.5mm X 51.2mm overall length approx.
•Net Weight: 16.7g approx.
*Rating: 7A 125V / 2.5A 250V AC
