CF-601M NCF(R)

頂級平衡訊號線的最佳搭檔
Furutech CF-601M / CF-602F NCF XLR公/母插頭

CF-601M 和 CF-602F 是 Furutech 最 新 推 出 的 旗 艦 級 XLR 公 / 母 插 頭 , 這 是Furutech 首度在 XLR 插頭上運用自家引以為傲的 NCF(Nano Crystal2 Formula)配方。NCF 是一種特殊化合物,結合了奈米級結晶壓電陶瓷顆粒、碳纖維粉末、玻璃纖維和樹脂,不僅能消除靜電,還具有優異的阻尼性質,可降低共振,並將熱能轉化為遠紅外線以提升電氣特性,用在 XLR 插頭上更能有效提升訊號傳輸品質。

我要分享

CF-601M XLR 公插和 CF-602F XLR 母插內最重要的金屬接觸部分,都用上了 NCF材料,當中除了抗共振的 NCF 阻尼物之外,還包含最新的液態結晶 NCF 聚合物樹脂,消除靜電、共振與活化的效果更勝以往。除此之外,CF-601M 和CF-602F 內中的金屬部件都經過攝氏零下 196 度超低溫處理,藉此消除金屬內部應力,使結晶更為緊密,接著再予以消磁,以進一步提升導電性。

CF-601M 和 CF-602F 的銀光色外殼也不簡單,它結合了 NCF 聚合物、碳纖維層,及鍍銀 3K 碳纖維 NCF 層,經硬質透明塗層塗佈後,再覆蓋於非磁性不鏽鋼外殼上,兼具最佳性能與精緻外觀。CF-601M 和 CF-602F 尾端最大可容納10mm 線徑的線材,內部接點則可容納 14 至 12AWG 之導線,固定方式為螺絲固鎖,或用焊接也可以。

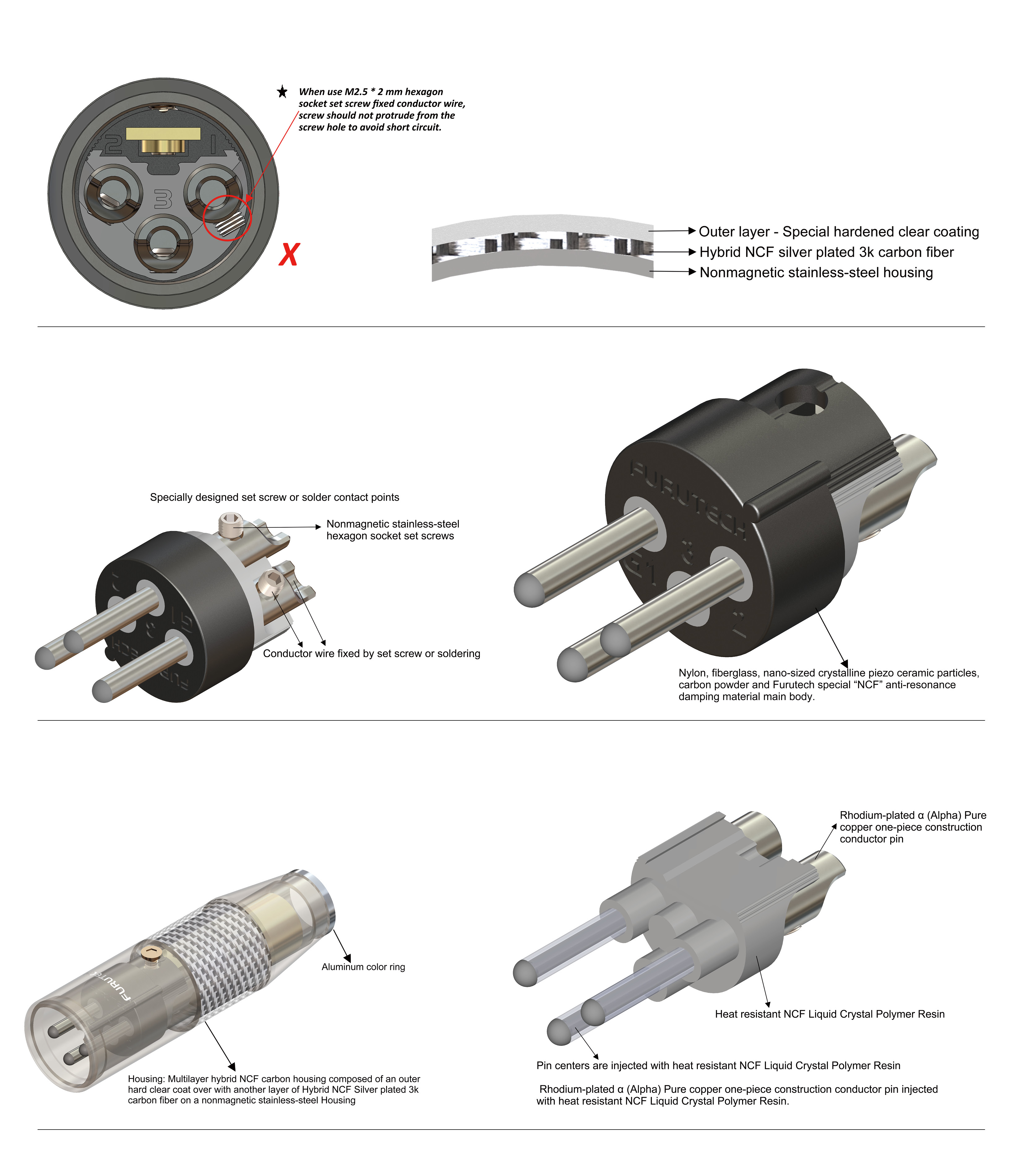

Features
• Rhodium-plated α (Alpha) Pure copper one-piece construction conductor pin injected with heat resistant NCF Liquid Crystal Polymer Resin.
• Nylon, fiberglass, nano-sized crystalline piezo ceramic particles, carbon powder and Furutech special “NCF” anti-resonance damping material main body combine heat resistant NCF Liquid Crystal Polymer Resin. NCF delivers improvements in the depth and focus of the sound stage, harmonics and tonal balance. Low frequencies are cleaner, with a greater sense of definition made possible by a lowered noise floor.
• Housing: Multilayer hybrid NCF carbon housing composed of an outer hard clear coat over with another layer of Hybrid NCF Silver plated 3k carbon fiber on a nonmagnetic stainless-steel Housing. The best of damping and insulation materials improve frequency extension and tonal balance.
• Conductor wire fixed by set screw or soldering.
• Specified for cable diameters max. 10.0mm.
• Accommodates: 14AWG (2.08 sq.mm) max. stranded wire / 12AWG (3.3 sq.mm) max solid core wire. Wire diameter 2.1mm max.
